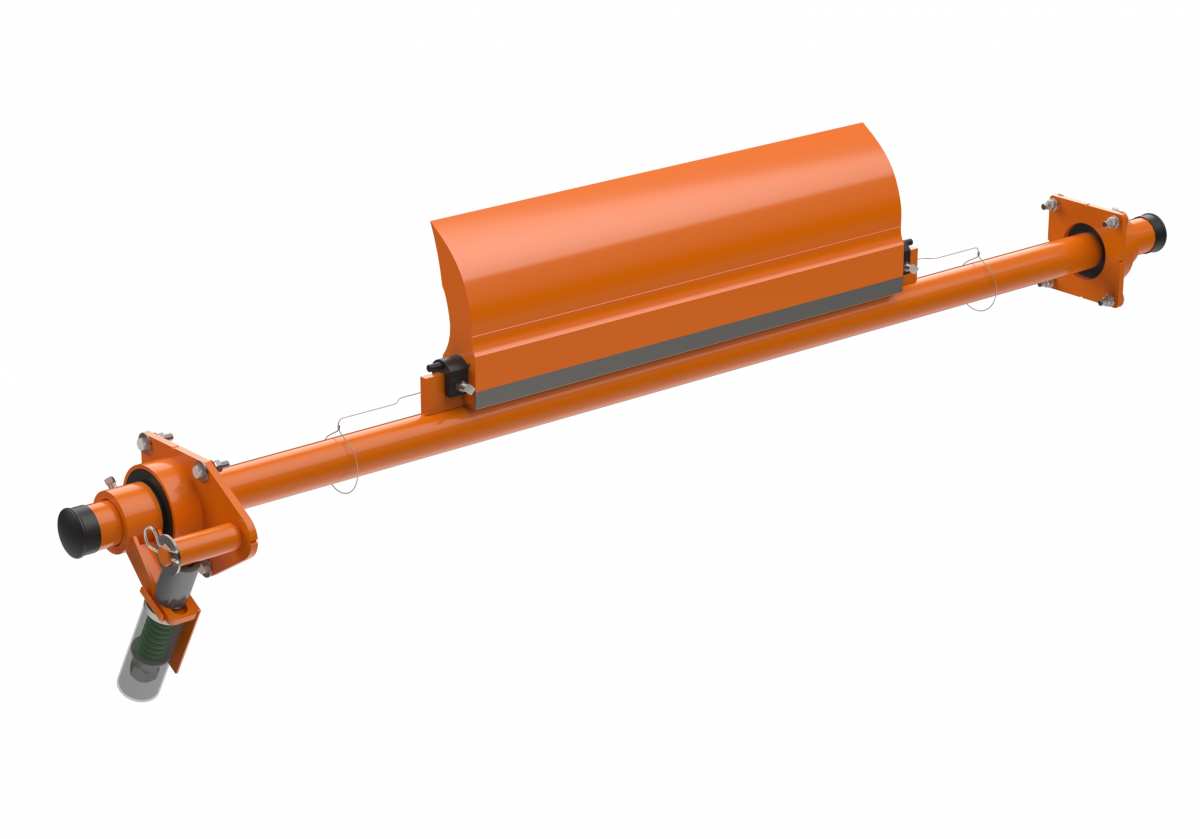

Martin®  QC1+™ Cleaner XHD

The Martin® QC1+™ Cleaner XHD tackles the tough jobs. Designed for rugged conditions, this sturdy cleaner allows for quick and easy blade change, making replacement of a worn blade a simple procedure.

The Martin® QC1+™ Cleaner XHD includes a Spring Tensioner to maintain proper cleaning pressure while minimizing the need for adjustment.

Dual tensioners are supplied with cleaners for belts 1400 mm wide or wider.

  • Matched Tensioner Maintains Consistent Cleaning
    Martin® QC1+™ Cleaner XHD and Spring Tensioner are system-engineered to preserve the cleaning edge from high belt speeds and multiple splices.
  • Curved Blade Provides Consistent Cleaning
    Patented “CARP” (Constant Angle Radial Pressure) design maintains cleaning performance through all stages of blade life.

Product Specifications

Belt Width Up to 71 in (up to 1800 mm)
Belt Speed Up to 1200 fpm (up to 6.1 m/s)
Pulley Diameter 16-30 in (400-800 mm)
Temperature Between -40 °C and 150 °C
Corrosive Conditions Yes
Underground Applications No
Compatible with Reversing Belts or Roll Back Yes
Accommodates Mechanical Splices Yes

Resources

Product Catalogue Download
Tech Data Sheet - QC1+™ Cleaner XHD w/1-pc Mainframe Download
Operator Manual - QC1+™ Cleaner XHD Download
