Thermo Safety Shield - Automatic Slide Gate

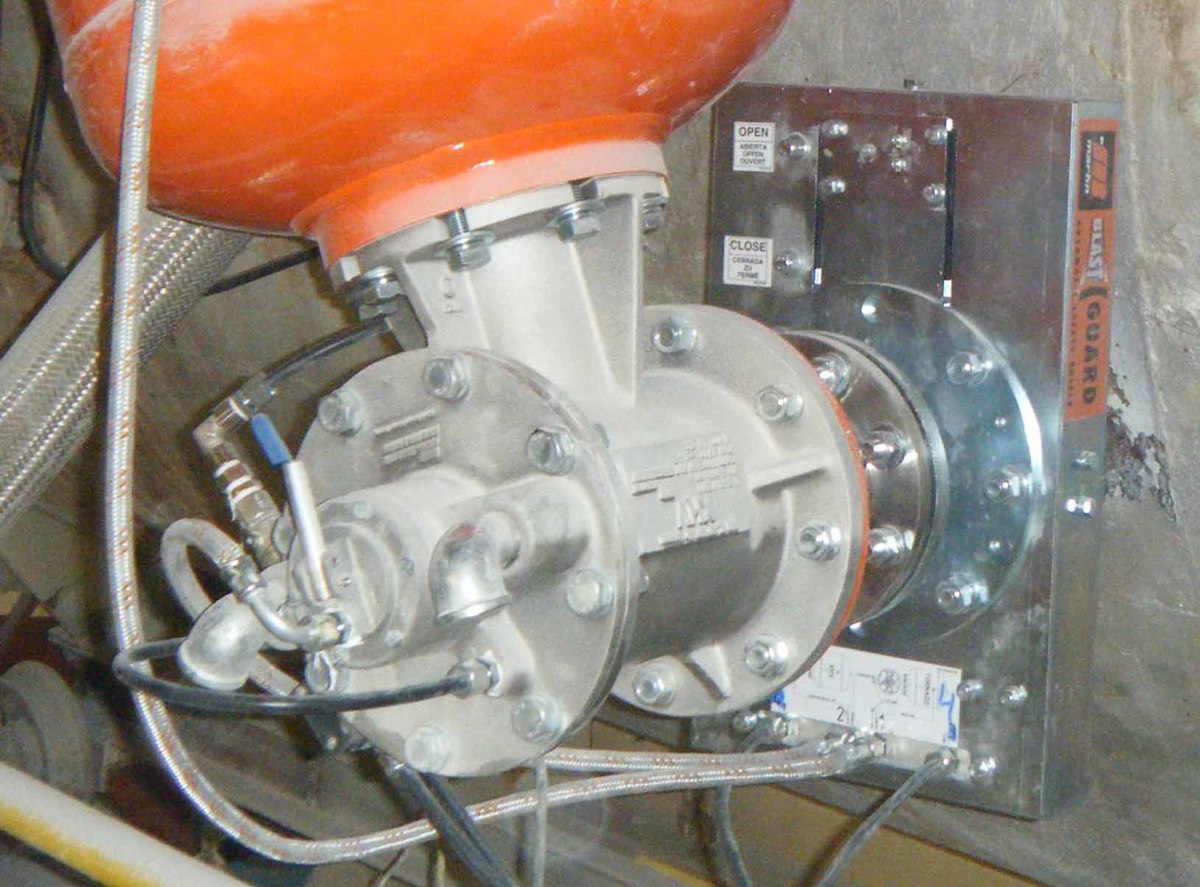

Controlled by two air lines from the existing solenoid bank, a pair of pneumatic cylinders open the Martin® Thermo Safety Shield Automatic Slide Gate, which in turn triggers the Air Cannon (AC) to fire. Once the cannon has fired and the electrical signal from the solenoid bank drops, the pneumatic cylinders return the slide gate to it's closed position.

Features and Benefits:

• Protects Air Cannons from heat and dirt virtually 100% of the time
• Protects the cleaning personal even the tank is pressurized (even at a pressure drop)
• No additional work to close the gates manually by hand
• Increases life time and reliability of the Air Cannon
• Control signal is fed by tank pressure through short control lines resulting in no loss of impulse or performance
• Protection of AC against violent CO₂ explosives
• Frequent activation prevents seizing of the slide gate by material build-ups and corrosion
• Snapping plate & gravity keeps slide gate closed, even in in the case of an accidental pressure drop
• Protects the AC even it is unpressurized while the hot process is running

Our technicians and engineers are available to provide expert advice and assistance on this product and all of your bulk material handling questions and problems. Please contact us today and let us help!
